The Dialogys MPF screen

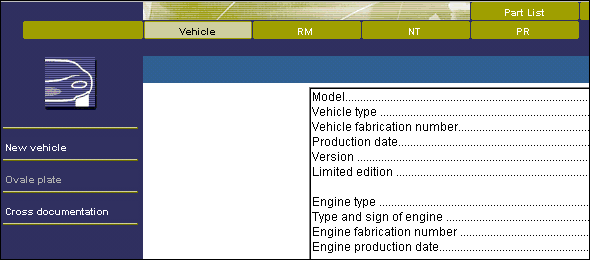

The following screen appears when you start DIALOGYS MPF:

This screen comprises a toolbar along the top of the screen and a toolbar down the left-hand side.

The top toolbar is permanent: it gives you access to the main functions in Dialogys MPF. The left-hand toolbar,on the other hand, is contextual: the buttons displayed depend on the selection made from the top toolbar.




Functions of the buttons in the top toolbar


When you click on one of the buttons in the top toolbar, it changes colour and an icon representing yourselection is displayed.

Vehicle button (here it is "selected").

  Button for accessing the Workshop Repair Manuals.

  Button for accessing the Technical Notes.

  Button for accessing the Spare Parts documentation.

  Button for accessing the list of all parts found. In this list you will find a button
showing a flag for converting currencies.

  Button for accessing the contact form. You can use this to notify the documentationdepartment of a problem with the documentation contents.

  Button for accessing the control pannel.




Description of the icons

Represents the form for the vehicle's technical specifications.

  Represents the Workshop Repair Manual documentation (MR).

  Represents the Technical Note documentation (NT).

  Represents the Spare Parts documentation (PR).

  Represents the Part list.

  Represents the contact form.








Functions of the buttons in the toolbar on the left of the screen


These buttons generally depend on the current function. They will be described in the appropriate sections. Only a couple of buttons in the lower part of the toolbar are permanent:

Access to help


Vou will also find a button allowing you to swap between two currencies. For example, for France, this button may show one of the following two images:

Prices displayed in local currency

Prices displayed in euros
